|Name:||ASTM A234 WP5 Alloy Fittings|
|Size:||1/4" to 120"|
|Rating:||SCH10 To SCHXXS|
|Steel Grade:||A234 WP5, WP9, WP11, WP22, WP91, WP92|
|Packing:||Standard seawory/airworthy packing|
|End:||Plain ends or bevelled ends|
|Delivery term:||FOB, CIF, CNF, EXW|
|Payment term:||TT or L/C at sight|
|Deliver mode:||By sea, By air, By land|

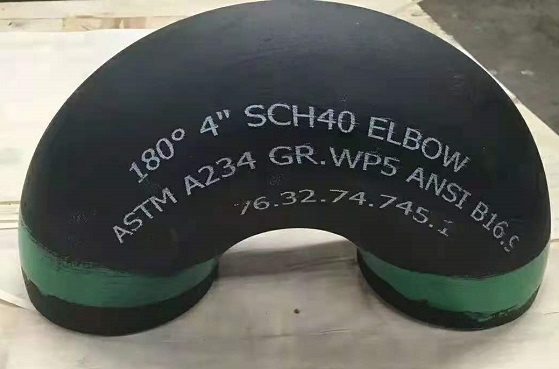

ASTM A234 Alloy Steel WP5 Buttweld Pipe Fittings
Hebei Zhongji manufacturer A234 WP5 fittings made from high quality alloy steel to ASTM A234 which can beused in various piping systems. The advantages of butt weld include:
• Welding a fitting to the pipe means that it is permanently leak proof.
• The continuous metal structure formed between the pipeand fitting adds strength to the system.
• Smoother inner surface and gradual direction changedreduce the pressure losses and turbulence and minimises the action of corrosion and abrasion.
• A welded system utilisesminimal space.
ASTM A234 covers wrought carbon steel and alloy steel fittingsof seamless and welded construction covered by the latest revision of ASMEB16.9, B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, and MSS-SP-97. These fittingsare for use in pressure piping and in pressure vessel fabrication for serviceat moderate and elevated temperatures.
Killed steel, with forgings, bars, plates, sheet, and seamless or fusion-welded tubular products with filler metal added. Forging or shaping operations performed by hammering, pressing, piercing, extruding, upsetting,rolling, bending, fusion welding, machining, or by a combination of two or more of these operations.
After forming at an elevated temperature, fittings are cooled toa temperature below the critical range under suitable conditions to prevent injurious defects caused by too rapid cooling, but in no case more rapidly than the cooling rate in still air. Heat treatment temperatures specified are metal(part) temperatures. Heat-treated fittings are to be treated according to paragraph 7 in Specification A960/A960M.
|WPB||WPC||WP11 CL1||WP11 CL2,||WP11 CL3||WP22 CL1,||WP22 CL3||WP5 CL1,||WP5 CL3|
|Silicon||0.10 min||0.10 min||0.50–1.00||0.50–1.00||0.50–1.00||0.5||0.5||0.5||0.5|
|Molybdenum||0.15 max||0.15 max||0.44–0.65||0.44–0.65||0.44–0.65||0.87–1.13||0.87–1.13||0.44–0.65||0.44–0.65|
|Others||Vanadium 0.08||Vanadium 0.08||…||…||…||…||…||…||…|
|WP9 CL1,||WP9 CL3||WP91|
|Tensile strength, minimum unless a range is given ksi (MPa)||60 (415)||70 (485)||60 (415)||75 (520)||90 (620)|
|Yield,strength, min ksi (MPa) (0.2% offset or 0.5% extension under-load)||35 (240)||40 (275)||30 (205)||45 (310)||60 (415)|
WPC, WP11, WP22
round specimen, or small proportioanl specimen, min % in 4 D
|Rectangular speicmen for wall thickness 5/16″ and over, and
for all small sizes tested in full section; min % in 2 in.
|Rectangular speicimen for wall thickness less than 5/16″;
min % in 2 in (1/2″ wide specimen)
