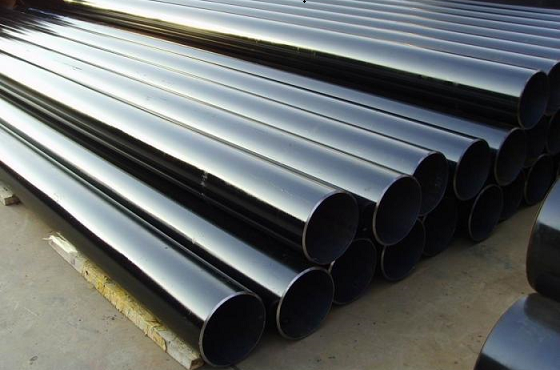

Name:	API 5L Pipe Specifications
Specification:	API 5L
Size:	1/4" to 60"
Rating:	SCH10 To SCHXXS
Steel Grade:	API 5L X42, X46, X52, X56, X60, X65, X70
MOQ:	100 KGS
Packing:	Standard seawory/airworthy packing
End:	Plain ends or bevelled ends
Delivery term:	FOB, CIF, CNF, EXW
Payment term:	TT or L/C at sight
Loading Port:	XINGANG
Deliver mode:	By sea, By air, By land

Product Description

API 5L PIPE SPECIFICATIONS

Hebei Zhongji stocks API 5L pipe in grades B and X42 – X70.

API 5L Grade B Pipe Pressure Rating

Scope

ANSI / API 5L specifies the manufactureof two product levels (PSL1 and PSL2) of seamless and welded steel pipe for theuse of a pipeline in the transportation of petroleum and natural gas. Formaterial use in a sour service application, refer to Annex H; for offshoreservice application, refer to Annex J of API 5L 45th Edition.

Process

Ingots, blooms, billets, coils or platesused for the manufacture of pipe shall be made via basic oxygen, electricfurnace or open hearth in combination with a ladle refining process. For PSL2,the steel shall be killed and melted according to a fine grain practice. Coilor plate used for PSL2 pipe shall not contain any repair welds.

Chemical requirements

ChemicalComposition for PSL 1 pipe with t ≤ 0.984”

Steel Grade	Mass fraction, % based on heat and product analyses a,g
	C	Mn	P	S	V	Nb	Ti
	max b	max b	max	max	max	max	max
Seamless Pipe
A	0.22	0.9	0.3	0.3	–	–	–
B	0.28	1.2	0.3	0.3	c,d	c,d	d
X42	0.28	1.3	0.3	0.3	d	d	d
X46	0.28	1.4	0.3	0.3	d	d	d
X52	0.28	1.4	0.3	0.3	d	d	d
X56	0.28	1.4	0.3	0.3	d	d	d
X60	0.28 e	1.40 e	0.3	0.3	f	f	f
X65	0.28 e	1.40 e	0.3	0.3	f	f	f
X70	0.28 e	1.40 e	0.3	0.3	f	f	f
Welded Pipe
A	0.22	0.9	0.3	0.3	–	–	–
B	0.26	1.2	0.3	0.3	c,d	c,d	d
X42	0.26	1.3	0.3	0.3	d	d	d
X46	0.26	1.4	0.3	0.3	d	d	d
X52	0.26	1.4	0.3	0.3	d	d	d
X56	0.26	1.4	0.3	0.3	d	d	d
X60	0.26 e	1.40 e	0.3	0.3	f	f	f
X65	0.26 e	1.45 e	0.3	0.3	f	f	f
X70	0.26e	1.65 e	0.3	0.3	f	f	f
a. Cu ≤ = 0.50% Ni; ≤ 0.50%; Cr ≤ 0.50%; and Mo ≤ 0.15%, b. For each reduction of 0.01% below the specified max. concentration for carbon, and increase of 0.05% above the specified max. concentration for Mn is permissible, up to a max. of 1.65% for grades ≥ B, but ≤ = X52; up to a max. of 1.75% for grades > X52, but < X70; and up to a maximum of 2.00% for X70., c. Unless otherwise agreed NB + V ≤ 0.06%, d. Nb + V + TI ≤ 0.15%, e. Unless otherwise agreed., f. Unless otherwise agreed, NB + V = Ti ≤ 0.15%, g. No deliberate addition of B is permitted and the residual B ≤ 0.001%
