Product Center

Name:	A333 Gr 6 Pipes
Specification:	ASTM A333
Size:	1/4" to 120"
Rating:	SCH10 To SCHXXS
Steel Grade:	A333 GR1, GR3, GR6
MOQ:	100 KGS
Packing:	Standard seawory/airworthy packing
End:	Plain ends or bevelled ends
Delivery term:	FOB, CIF, CNF, EXW
Payment term:	TT or L/C at sight
Loading Port:	XINGANG
Deliver mode:	By sea, By air, By land

Product Description

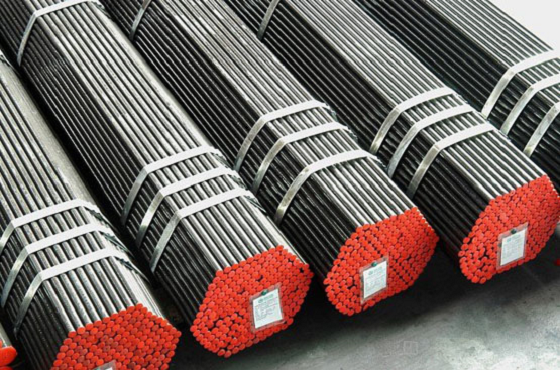

aSTM A333 grADE 6 SEAMLESS pipes

ASTM A333 Gr 6 pipes is a steel grade stipulated in A/SA-333 which Grades allow for cold temperature service to minus 150°F. Material is always provided in the normalized condition at a minimum and Charpy Impact tested to a specific temperature range to assure compliance with the required service temperature.

ASTM A333 Grade 6 Pipes Sizes

1/4” Nominal to 42”O.D.
Wall Thickness – Schedule 10 through XXH

Low Temperature Steel Pipe Specifications & Grades

SA333 & A333 – Grades 1, 3, & 6

A671 CC65 CL22 EFW at -50°F (Welded Alternative to A333)

ASTM A333 Grade 6 Pipe Dimensions

Flanges & Fittings

Flanges – A/SA 350 LF2, LF3

A/SA-420 WPL6, WPL3

Click here to request a quote for A333 Gr 6 pipes.
